Electronic PDLC Switchable Smart Glass For Privacy Glass Sliding Door

Name: Electronic PDLC Switchable Smart Glass For Privacy Glass Sliding Door
Brand: VALUES GLASS
Price: 1 USD

Quality Electronic PDLC Switchable Smart Glass For Privacy Glass Sliding Door wholesale

Brand Name : VALUES GLASS

Model Number : Smart Glass

Certification : Upon Request

Place of Origin : China

MOQ : 5 pieces

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10,000 sq.meter/Month

Delivery Time : 14 Days

Packaging Details : Plywood Pallet or per request

Glass : Clear Glass, Ultra Clear Glass

Thickness : 5+5mm / 6+6mm

Width : Max 1,800 (Smart Glass) / 1,500mm (Self-Adhesive Film)

Film Application : To be laminated / Self-adhesive Film

Film Color : Clear, Milky, Grey, Blue, Green, Red

Light Transmittance : >=86% (ON) / <=10% (OFF)

Contact Now

Electronic PDLC Switchable Smart Glass For Privacy Glass Sliding Door

Switchable smart glass provides a very broad range of the use for architects, designers, offices and interiors. Our switchable glass ensures an immediate reaction when switching between clear (transparent) and mat (non-transparent) surface. The film is laminated between two safety glasses to reach maximum protection against dust, wet and mechanic damage.

Product Description:

Product Name	Fast Response Switchable Privacy Glass PDLC Film Long Life With High Security
Raw Material Glass	Clear Glass, Ultra Clear Glass
Thickness	5+5mm / 6+6mm
Color	Clear, Milky, Grey, Blue, Green, Red, Black
Common Width	Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters) Self-Adhesive -- 1.0, 1.2, 1.5meters (Max 1.5meters)
PDLC Film Length	30meters/roll or per request
Light Transmittance	Clear Glass: >= 82% (ON) / <=8% (OFF) Ultra Clear Glass: >= 86% (ON) / <=10% (OFF)
Response Time	From OFF to ON: <=50ms From ON to OFF: <=200ms
Power consumption	5W/sq.meter
Operating Temperature	-20 ℃ and 70 ℃
Life Time	>=50,000hours
Transformer	AC 60V (Suggest to use nominated transformer)
Silicon Glue	Neutral (Suggest to use nominated silicon glue to prevent glass corrison)

Switchable Privacy Glass Function:

1.Privacy protection. As most important function, smart glass can be changed from
2.transparent to opaque via easy model ON & OFF.
3.Perfect function of safety. As smart glass is a special kind of laminated glass, it has
4.all the good function of the laminated glass, mainly the security.
5.Blocks more than 99% UV rays ,avoiding fading in the room.
6.Sound proof.

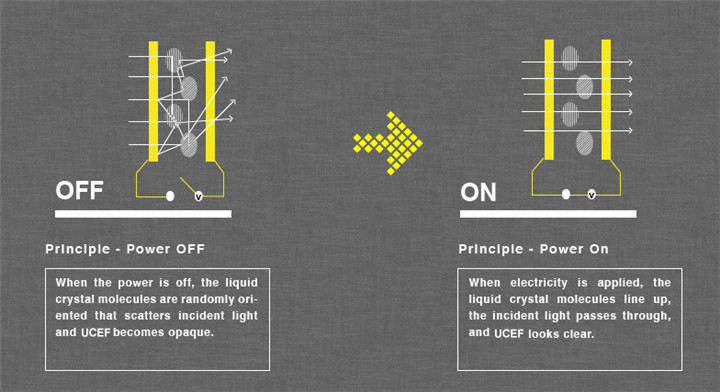

Theory of Smart Glass:

Electronic PDLC Switchable Smart Glass For Privacy Glass Sliding Door
